Milling machine series

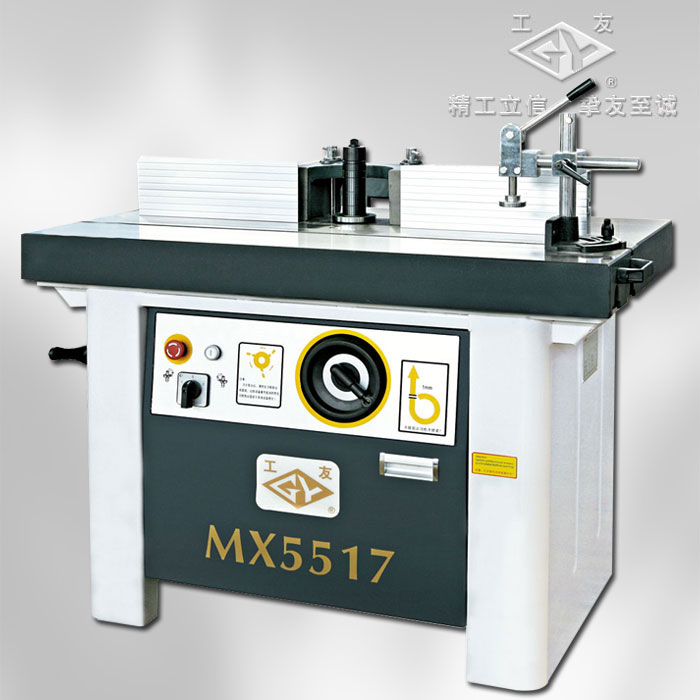

MX5517 Table-sliding Milling Machine

Technical Specification	Unit	MX5517
Main spindle speed	r/min	10000/8000/6000
Cutting circle diameter	mm	?35(?40 optional)
Max. milling height	mm	120
Min. copy radius	mm	R45
Max. stroke of travelling table	mm	780
Working table hight	mm	800
Motor power	kW	4×2(5.5×2 optional）
Fixed table size	mm	1130×410
Travelling table size	mm	1130×260
Overall dimensions	mm	1130×670×1060
Net.weight	kg	358
